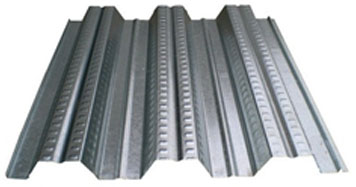

Composite Steel Floor Decking is Cold-Formed Steel Decking, which acts as a permanent form. Composite Steel Floor Decking also acts as the positive bending reinforcement for the structural concrete. Which are built into the deck creating a reinforcement concrete slab and act as working platform.
Various applications are multi-storey buildings, mezzanines, bridge walkways, platforms and parking garages, storage facilities, etc.
| Deck Profile | Depth | Width | Pitch | Thickness |
|---|---|---|---|---|
| 44/130 | 44 mm | 956 mm | 130 mm | 0.63 mm – 1.6 mm |
| 52/324 | 52 mm | 976 mm | 324 mm | 0.80 mm – 1.5 mm |
| 75/300 | 75 mm | 906 mm | 300 mm | 0.80 mm – 1.5 mm |
| Raw Material Standards: As per ASTM A653 / IS 277 | ||||
